A modern heated floor installation is the premier solution for home comfort across Egypt’s top residential developments — from New Cairo and Sheikh Zayed to the North Coast and Red Sea. A well-engineered system delivers even thermal distribution, eliminates cold spots, saves up to 40% on energy, and preserves 100% of your interior architectural space.

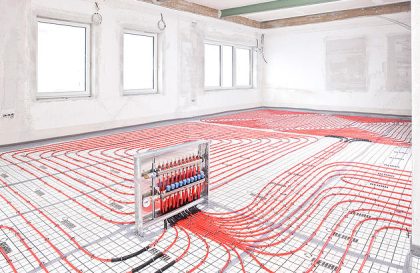

A hydronic underfloor heating system relies on a closed-loop network of high-grade European pipes embedded beneath floor finishes (marble, porcelain, ceramic, or engineered parquet). Low-temperature warm water (35°C–45°C) circulates through these pipes, radiating heat directly from the ground up — warm feet, cool head — in line with European comfort standards.
Transform your living space with Greenwell’s heated floor installation. Get in touch for a free quote.
Since pipes are permanently concealed beneath concrete, choosing high-grade European materials is essential to prevent leaks and premature failure in any heated floor installation.
Greenwell uses 5-layer European PEX-a and PEX-AL-PEX pipes with EVOH barriers, guaranteeing a 50+ year lifespan.
|
Phase |
Procedure | Objective |
|
1. Thermal Loss Calculation |
Room-by-room heat loss based on glazing, ceiling height, orientation, floor finish | Sets exact pipe spacing and flow rates |
|
2. Subfloor Insulation (XPS) |
High-density XPS boards (30–50mm) on the slab |
Stops downward heat loss, pushes energy upward |
| 3. Pipe Layout | 5-layer PEX-a oxygen-barrier pipes in a spiral counter-flow pattern |
Uniform surface temperature, no hot/cold spots |
|
4. Manifold & Zoning |
Brass/stainless manifold with flow meters and actuators |
Independent smart control per room |
|
5. Pressure Testing |
Pressurized to 6 bar for 24–48 hours before screeding |
Confirms leak-free integrity |
| 6. Thermal Screed | Liquid cement screed with thermal plasticizer over the pipes |
Protects pipes, optimizes heat conduction |
Greenwell is a leading central heating and smart climate engineering firm specializing in heated floor installation, with 15+ years of experience and offices in Egypt, Germany, and Libya.
A heated floor installation works with more than just tile:
Challenge: A silent, invisible system for double-height marble reception areas and wood-floored bedrooms, without cracking marble or warping wood.
Solution: Multi-zone hydronic heated floor installation using Spanish Blansol PEX-AL-PEX pipes over 40mm XPS insulation, integrated with a European De Dietrich boiler for winter boosts, plus smart thermostats linked to home automation.
Result: Stable 22°C across all zones, 55% lower winter energy, backed by a 25-year warranty.
Because the heated floor installation depends on burying it under expensive marble or hardwood, the cost of failure is high. Evaluate contractors on:
Ready to upgrade your home with European climate comfort? Rely on Greenwell’s certified engineering standards for your heated floor installation — contact us for a free site evaluation.
Yes — both conduct heat well, warming evenly and retaining heat after shutoff.
Yes, with wood rated for underfloor heating. Greenwell caps surface temperature at a safe 27°C using floor sensors.
Greenwell uses continuous, jointless PEX-a/PEX-AL-PEX pipe and pressure-tests before screeding, making leaks practically zero over a 50+ year lifespan.
During early MEP/sanitary works — after plastering and electrical conduits, before the final screed and tiling.
No — paired with inverter heat pumps or condensing boilers, it's one of the most cost-effective options, lowering bills versus electric AC.
Each zone has its own manifold circuit with electro-thermal actuators and a digital thermostat.
Radiators heat air by convection from a wall unit; floor heating radiates evenly across the entire floor, keeping walls clear.
Yes — a single heat pump or solar array can power underfloor heating, pool heating, and domestic hot water together.
Up to 25 years on European piping infrastructure, plus 2 years of complimentary maintenance and rapid technical support.
