Capillary Tube Mats Installation: Save 40% on Energy Costs with Greenwell’s Premier Heating System in 2026

Capillary Tube Mats Installation is the next revolution in smart home heating, providing natural warmth with the lowest possible operating costs. At Greenwell, we focus on maximizing modern technology by ensuring seamless Heat pump compatibility with capillary mats, guaranteeing a sustainable system that operates with unparalleled energy efficiency during the harsh winter cold. If you are wondering How to install Capillary Tube Mats in a false ceiling? to ensure optimal heat distribution without compromising your home’s interior aesthetics, or if you are searching for the best central heating prices in Egypt for 2026, this article is your comprehensive guide to exploring Greenwell’s innovative designs that blend healthy luxury with smart savings.

What are Radiant Heating Mats? And why it’s important to capillary tube mats Installation

The technology behind Capillary Tube Mats Installation is inspired by the most efficient system in nature: the human circulatory system.

• Micro-Bore Engineering: The system uses a network of very thin tubes (3.4mm to 4.3mm) made of high-quality Polypropylene (PP-R).
• Surface Heat Exchange: Because the tubes are so close together (spaced 10mm to 30mm apart), the entire surface area of the mat becomes a massive heat exchanger.
• Low-Inertia Advantage: Unlike thick underfloor heating pipes embedded in concrete, capillary mats respond almost instantly to temperature changes.
• Versatility: These mats are flexible enough to be installed on curved walls, domed ceilings, or even integrated into custom-built furniture.

Why are Capillary Tube Mats Installation important for your home?

In simple terms, choosing Capillary Tube Mats Installation is an investment in your comfort and health:

• Family Health First: Since it warms the room without blowing air, no dust or allergens circulate, making it the perfect solution for kids and allergy sufferers.
• Big Savings: The secret lies in Heat pump compatibility with capillary mats. The system uses very little electricity because the water doesn’t need to be very hot to keep you warm.
• Peace & Beauty: You’ll forget the system even exists. No noisy fans and no bulky units on the walls—just pure, silent warmth everywhere.
• Built to Last: Greenwell systems last for decades without complex maintenance, giving you peace of mind and saving you from constant repair hassles.

Elevate Your Living Standards Today. Why settle for noisy, dry air when you can have the ultimate invisible warmth? Experience professional Capillary Tube Mats Installation with Greenwell’s certified engineers. Contact us today for a full study on Heat pump compatibility with capillary mats and transform your winter experience. Contact us on WhatsApp or call us at 01146787877

The Mechanics of Warmth: How it Works

After capillary tube mats Installation, The philosophy of Greenwell heating is based on Radiant Energy rather than Convection.

• Radiant Heat Transfer: Heat is transferred directly from the ceiling or floor to the objects and people in the room, rather than blowing hot air.
• Homogeneous Climate: It eliminates Cold Spots usually found near windows or in corners, creating a uniform temperature from floor to ceiling.
• Self-Regulating Effect: As the room temperature approaches the water temperature in the mats, the heat transfer naturally slows down, preventing overheating.

Types of Capillary Tube Mats

At Greenwell, we provide tailored solutions by utilizing various mat types to ensure the highest efficiency and Heat pump compatibility with capillary mats. Here are the primary types we use in our engineering designs:

Detailed capillary tube mats Installation Guide: How to install Capillary Tube Mats in a false ceiling?

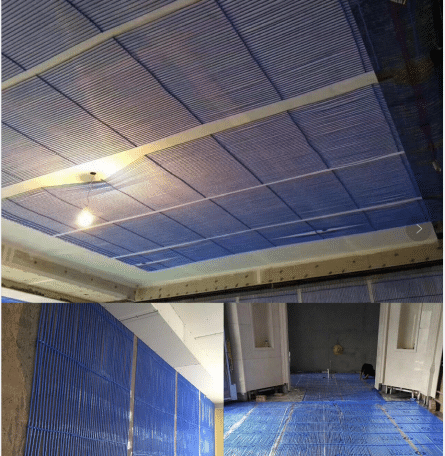

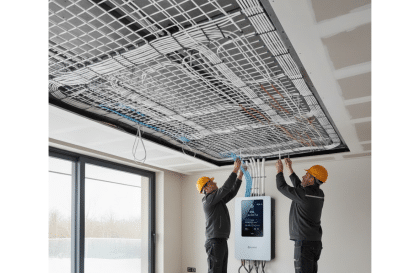

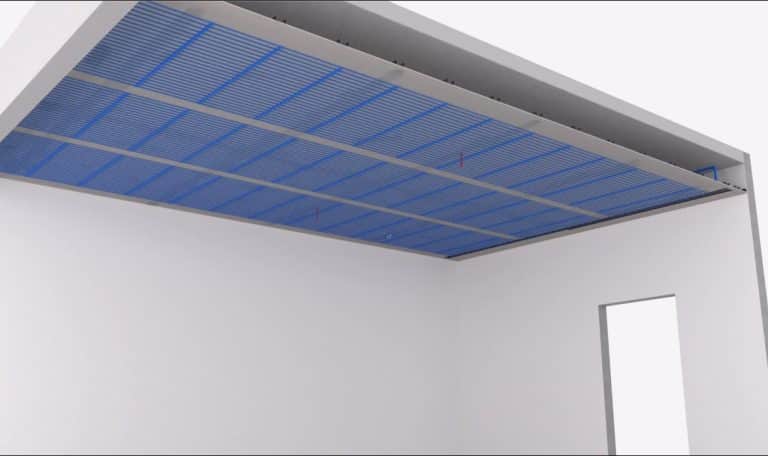

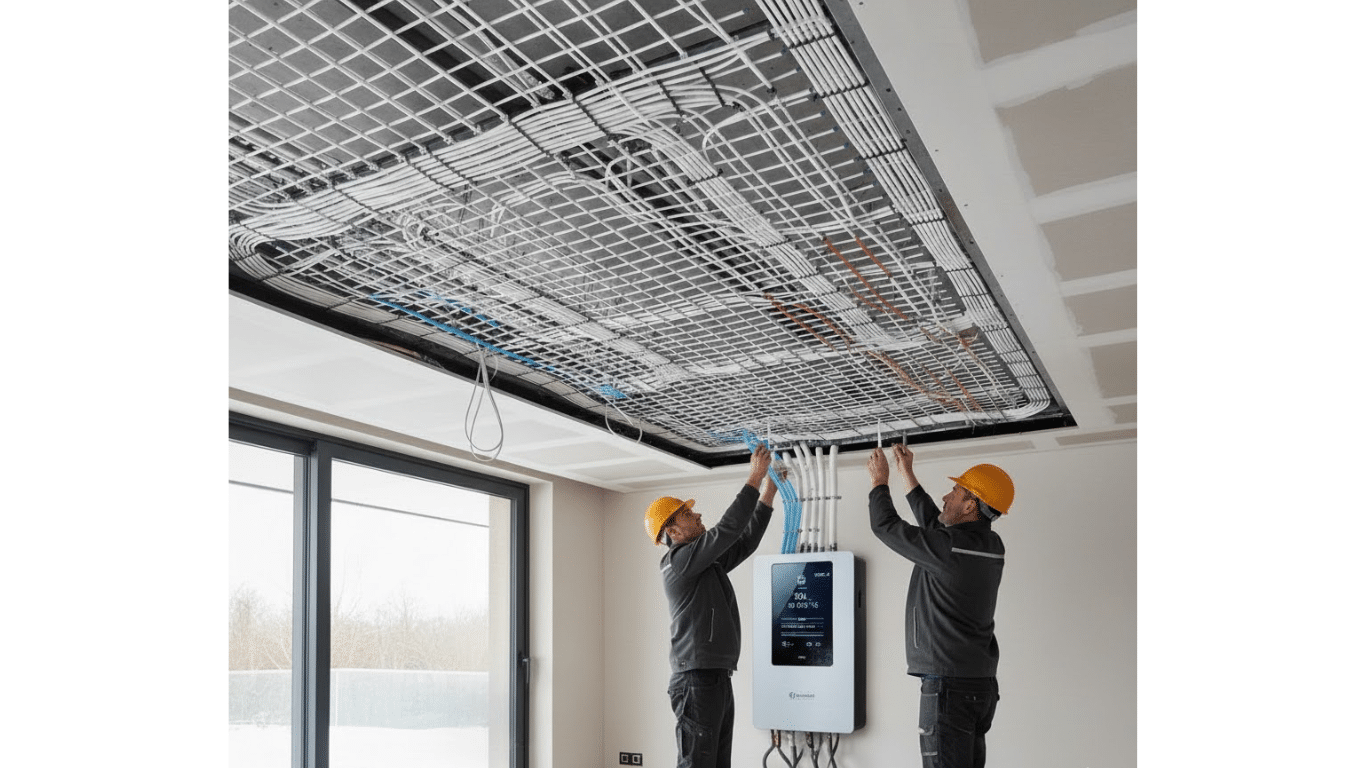

Installing these systems in a False Ceiling is one of Greenwell’s core specialties, offering a sophisticated heating solution that remains completely invisible.

• Pre-Installation Assessment: We calculate the exact thermal load of the room and map out the mat layout to avoid light fixtures or AC diffusers.
• Integration Methods:
  • In-Screed/Plaster: Mats are fixed to the ceiling slab and covered with a thin layer of thermal plaster.
  • Drywall Integration: Mats are placed directly behind the gypsum board panels for a clean, dry finish.
• The Hydraulic Connection: Every mat is connected to a Supply and Return manifold using thermal fusion welding, creating a Closed-Loop system that never needs refilling.
• Strict Testing Protocols: Before the ceiling is closed, we perform a multi-stage pressure test at 10 bar for 24 hours to guarantee zero leaks for the next 50 years.
• Thermal Insulation: A critical step where we apply a specialized insulation layer (Rockwool or Extruded Polystyrene) above the mats to reflect 100% of the energy downward.

Strategic Synergy: Heat Pump Compatibility

The true secret to energy savings in 2026 is Heat pump compatibility with capillary mats.

• Low-Temperature Heating: Traditional boilers need to heat water to 75°C. Capillary mats only need 30°C to 35°C to keep a house warm.
• Efficiency Boost: Air-to-water Heat Pumps are 400% efficient when producing low-temperature water, meaning for every 1kW of electricity used, you get 4kW of heat.
• Longevity of Equipment: Because the Heat Pump doesn’t have to work at high pressures or temperatures, the lifespan of the entire HVAC system is nearly doubled.
• Eco-Friendly Footprint: This combination is the greenest way to heat a home, significantly reducing CO2 emissions.

Greenwell Exclusive Design Features in capillary tube mats Installation

At Greenwell, we don’t just install pipes; we design an environment. Our central heating designs include:

• Silent Comfort: Zero decibel operation. No fans, no humming, no distractions.
• Anti-Allergy Environment: Because there is no forced air, there is no circulation of dust, pollen, or mites—making it the “Doctor Recommended” choice for asthma sufferers.
• Smart Zone Management: Each room is equipped with a digital thermostat linked to the Greenwell App, allowing you to heat only the rooms you are using.
• Architectural Freedom: No more ugly radiators blocking your windows or taking up wall space. Your walls and floors are your heaters.

Critical Factors for capillary tube mats Installation Selection

Choosing the right heating system is not a “one-size-fits-all” process. At Greenwell, we evaluate several technical factors to ensure the Capillary Tube Mats Installation provides maximum efficiency:

• Building Envelope & Insulation: The quality of your wall insulation and double-glazing windows dictates the Heat Load. A well-insulated building requires fewer mats, reducing the initial investment.
• Ceiling Height & Room Volume: In spaces with very high ceilings (double heights), ceiling-integrated mats are exceptionally effective as they heat the occupants via radiation without needing to warm the entire volume of air at the top.
• Available Installation Surface: We determine whether the mats should be installed in the false ceiling, walls, or floors based on the room’s furniture layout and floor finishes (e.g., thick carpets might slightly delay floor heating, making ceiling installation a better choice).
• Source of Energy: The availability of electricity for a Heat Pump or solar PV panels is crucial. Heat pump compatibility with capillary mats is the primary factor we consider to ensure the lowest running costs.
• Geographical Location: A villa in a coastal area has different humidity and temperature profiles than a residence in the desert, affecting how we calibrate the system’s response time.

Comprehensive Comparison: Greenwell capillary tube mats Installation vs. Conventional System

To understand why Capillary Tube Mats Installation is the premium choice, we must compare it with traditional HVAC methods:

After capillary tube mats Installation: Strategic Ways to Minimize Energy Consumption

While the system is inherently efficient, Greenwell implements specific strategies to push energy savings to the absolute limit:

• Optimizing Heat Pump COP: By ensuring perfect Heat pump compatibility with capillary mats, we run the pump at lower temperatures. A Heat Pump producing 35°C water is significantly more efficient than one producing 55°C, reducing electricity draw by up to 30%.
• Smart Zoning & Automation: We install smart thermostats in every room. This allows the system to “Hibernate” in unused rooms while maintaining peak comfort in active areas, preventing wasted energy.
• Utilizing Thermal Mass: We program the system to “Pre-heat” the building during off-peak electricity hours (if available) or during the sunniest part of the day if solar panels are integrated.
• Low-Flow Technology: The capillary design uses very small amounts of water. This means the system reaches the desired temperature using less energy to move and heat the fluid compared to traditional large-bore pipes.
• Advanced Weather Compensation: Greenwell systems use outdoor sensors to predict temperature drops. The system adjusts its output before the house gets cold, avoiding the “Power Spike” required to heat a frozen room from scratch.

Maintenance & Performance Monitoring after Capillary Tube Mats Installation

• Maintenance-Free Pipes: The PP-R material used in our mats does not corrode, scale, or rust.
• System Flushing: We use treated, oxygen-free water to ensure the internal system remains clean for decades.
• Annual Pump Check: The only maintenance required is a simple annual service for the Heat Pump unit, similar to a standard AC service.

Pricing & Value in the Egyptian Market (2026)

Understanding the investment for Central Heating Prices in Egypt

Investment vs. Cost of Capillary Tube Mats Installation, While the initial setup for capillary mats is higher than traditional heaters, the Payback Period is typically 3-5 years through electricity savings.

Factors Affecting Price of Capillary Tube Mats Installation

1. Glass Percentage: More glass in your design requires more mats to compensate for heat loss.
2. Ceiling Height: High ceilings require strategic mat placement for optimal radiation.
3. Insulation Quality: Better building insulation reduces the number of mats needed, lowering the price.

Greenwell Packages: We offer Turnkey packages that include everything from engineering drawings to the final commissioning of the system.

Common Mistakes during capillary tube mats Installation & How Greenwell Avoids Them

• Incorrect Hydraulic Balancing: If not designed correctly during Capillary Tube Mats Installation, some rooms will be warmer than others. Greenwell uses computer-aided balancing to ensure equal flow.
• Poor Insulation Choice: Using standard insulation can lead to heat being lost to the floor above. We use high-density thermal barriers.
• Inadequate Testing: Many contractors skip the high-pressure test. We consider it the most important step in our quality control.

Case Study of capillary tube mats Installation: Residential Excellence

In a recent project in New Cairo, a 500sqm villa was fitted with Greenwell capillary mats integrated into the false ceilings. Despite the large open spaces and floor-to-ceiling glass, the home maintained a steady 23°C throughout January, with a monthly heating bill 45% lower than neighboring villas using traditional VRF systems.

The Future of Comfort is Invisible. Don’t miss out on the most efficient heating technology of the decade. Let Greenwell guide you through the process of Capillary Tube Mats Installation. Discover how easy it is to manage How to install Capillary Tube Mats in a false ceiling with our expert team. [Request a Quote Now] Contact us on WhatsApp or call us at 01146787877

FAQ’s about capillary tube mats Installation

• Is it safe to have water pipes in my ceiling? Yes, the fusion welding creates a leak-proof solid structure stronger than the pipe itself.
• Can I use it for cooling? Absolutely. By running 16°C water in summer, it becomes a Radiant Cooling system.
• How thin is the system? The entire mat is less than 5mm thick, requiring almost zero extra ceiling space.
• Does it work with solar energy? Yes, Heat Pumps can be powered by solar PV panels for a “Zero-Cost” heating bill.
• How long is the warranty? Greenwell provides a 30-year warranty on the piping system.
• Can I install it in one room only? Yes, but for maximum efficiency, a whole-house system is recommended.
• Is the water in the pipes clean? It is a closed system; the water is treated once and circulates indefinitely.
• Will it affect my WiFi? Not at all. The plastic pipes have zero impact on electronic signals.
• Can I hang chandeliers in the ceiling? Yes, we provide “Thermal Mapping” after installation so you know exactly where it is safe to drill.
• Why is it better than a radiator? It saves space, saves energy, and provides a much more comfortable Sun-like warmth.
